Small Two Phase Hybrid Stepper Motor , Screw Stepper Motor 1.8 Degree

Name: Small Two Phase Hybrid Stepper Motor Screw Stepper Motor 18 Degree
Brand: XM-Motor
Price: 1 USD

Buy cheap Small Two Phase Hybrid Stepper Motor , Screw Stepper Motor 1.8 Degree product

Brand Name : XM-Motor

Model Number : XM28HS Screw Stepper Motor

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10000

Price : 1~10 USD/PC

Payment Terms : L/C,D/P,T/T

Supply Ability : 100000PCS/month

Delivery Time : 35days

Packaging Details : CTN OR CUSTOMIZED

Name : Two Phase Hybrid Stepper Motor

Material : black or customized

size : standard

packing : CTN or customized

motor : stepper motor

phase : 2~4

stepper motor : 4 wire stepper motor

high torque : Small Stepper Motor High Torque

Construction : PM

Contact Now

XM28HS Screw Stepper Motor Temperature Rise) 80℃Max Dielectric Strength): 500VAC For 1minute Shaft Axial Play) 0.08Max. (450g-Load)

Product details

1.8 ° 42HS two-phase hybrid stepper motor

General Specification:

(Item)	(Specifications)
(Step Angle)	1.8°
(Temperature Rise)	80℃max
(Ambient Temperature)	-20℃~+50℃
(Insulation Resistance)	100 MΩ Min. ,500VDC
(Dielectric Strength):	500VAC for 1minute
(Shaft Radial Play)	0.02Max. (450g-load)
(Shaft Axial Play)	0.08Max. (450g-load)
(Max. radial force)	28N (20mm from the flange)
(Max. axial force)	10N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Motor Weight
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm	Kg
28HS32-0424	1.8	32	0.4	11.9	6.7	600	4	9	0.11
28HS32-0504	1.8	32	0.5	11.4	7.4	600	4	9	0.11
28HS32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
28HS45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
28HS51-0674	1.8	51	0.67	9.2	7.2	1200	4	18	0.2
28HS51-1004	1.8	51	1.0	2.3	1.8	900	4	18	0.2

Above only for representative products, products of special request can be made according to the customer request.

Screw rod Specification:

Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)	Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)
Tr3.5	1	1	0.005	Tr6	2	1	0.01
	0.6096	0.6096	0.003		4	1	0.02
	2.4384	1.2192	0.0122		6	1	0.03
Tr5	1	1	0.005		12	2	0.06
Tr5	2	1	0.01

Dimensions:(/Unit=mm)

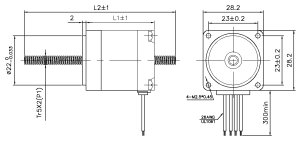

1,External Shaft motor /Nut: 1.POMPOM Nut

2./Copper Nut

Small Two Phase Hybrid Stepper Motor , Screw Stepper Motor 1.8 Degree

2,Non Captive motor

Small Two Phase Hybrid Stepper Motor , Screw Stepper Motor 1.8 Degree

接线图/Wiring Diagram:

Small Two Phase Hybrid Stepper Motor , Screw Stepper Motor 1.8 Degree
